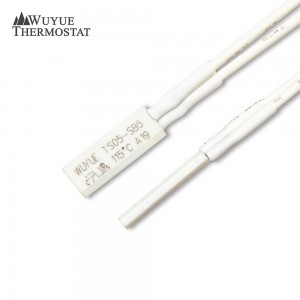

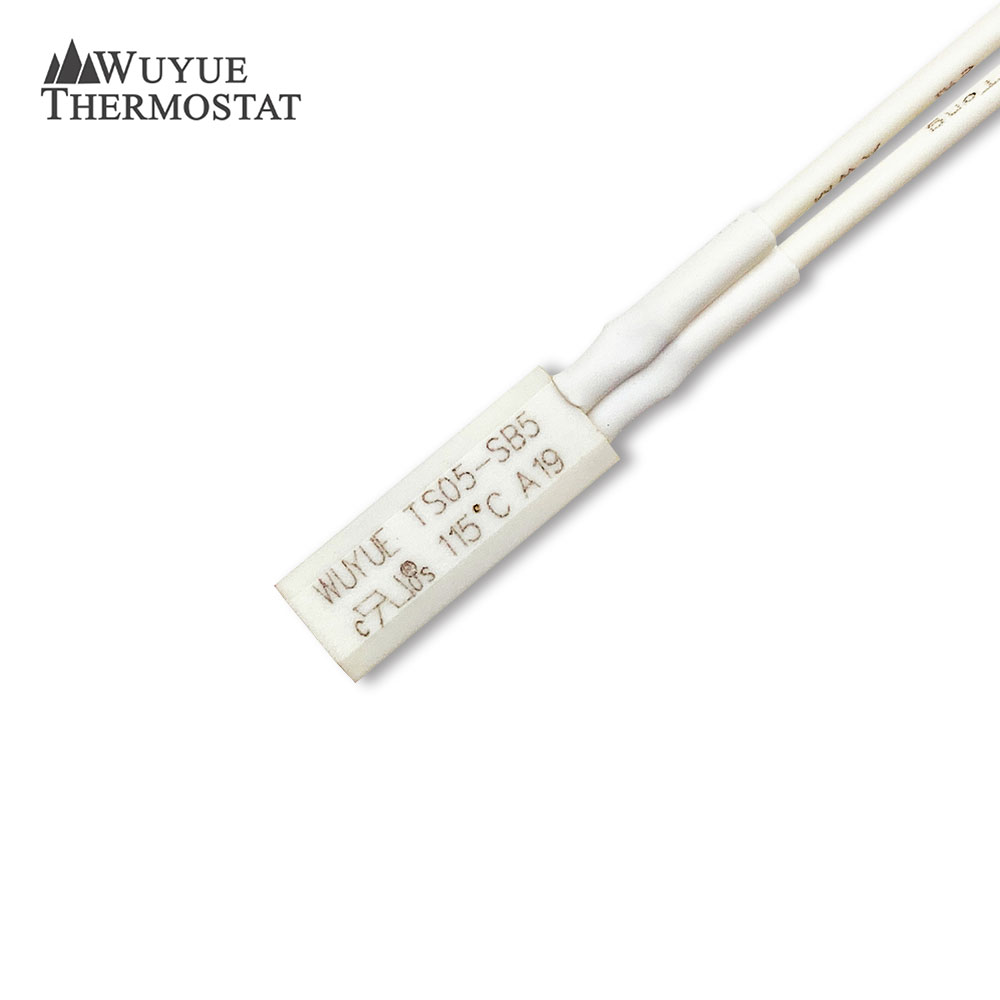

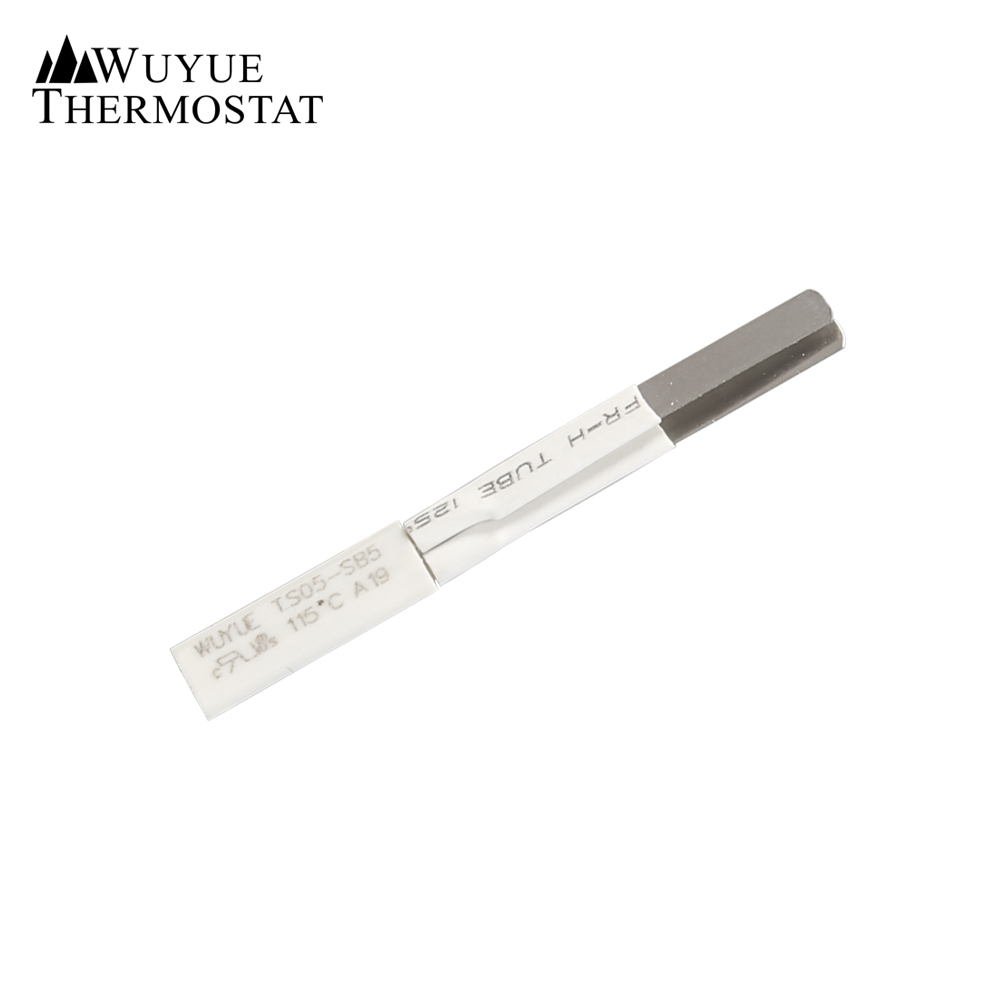

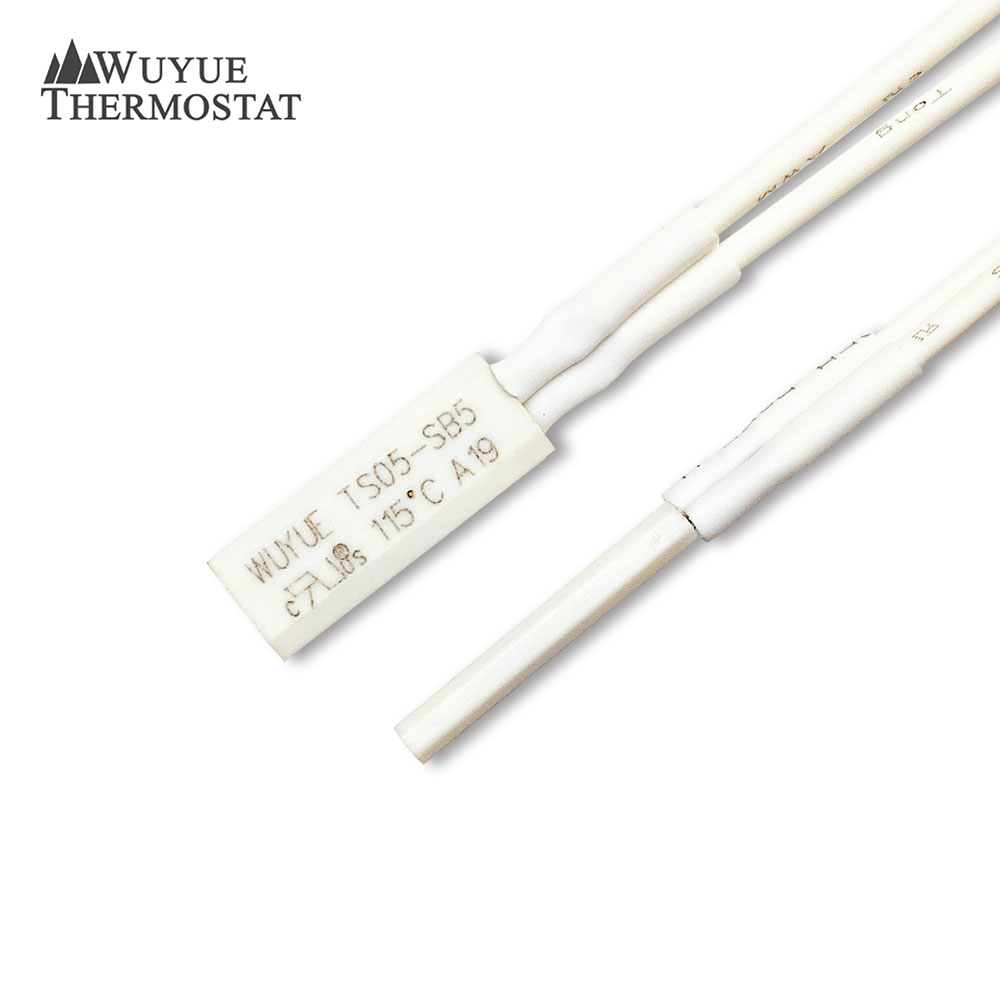

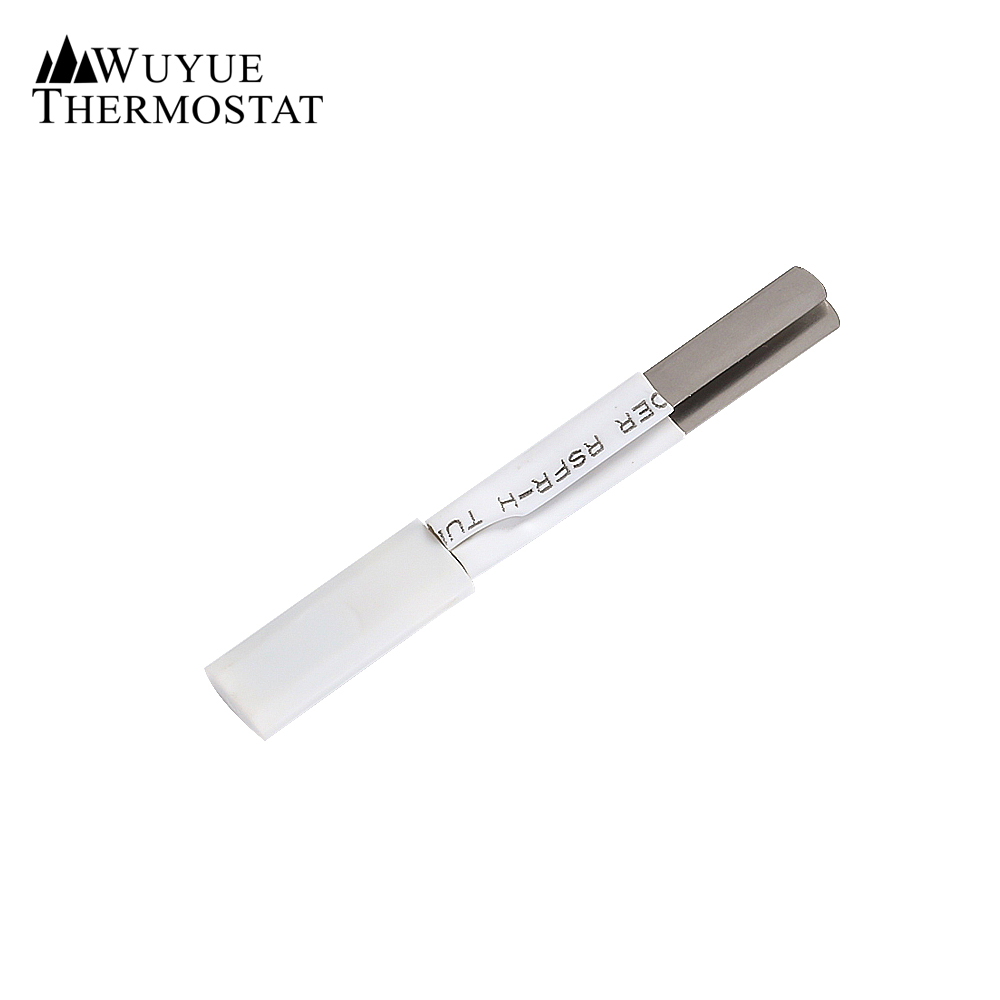

TS05 Thermal battery protector

Short Description:

TS05 series battery protector has a very small size accurate temperature and long endurance. The main applications are batteries and battery assembly. The seamless drawn case can contact with batteries firmly and sense temperature precisely.


Product Detail

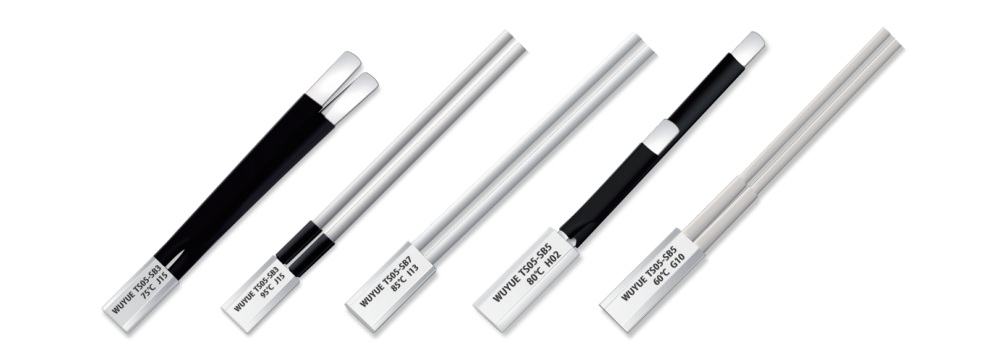

1630048078(1)

Special Features

Insulation case, small size and easy for fixing;

Action accurately and no flash over;

Has the characteristics of the current temperature double protection;

Double protection of current and temperatures;

Temperature is preset before releasing, control for a single temperature range;

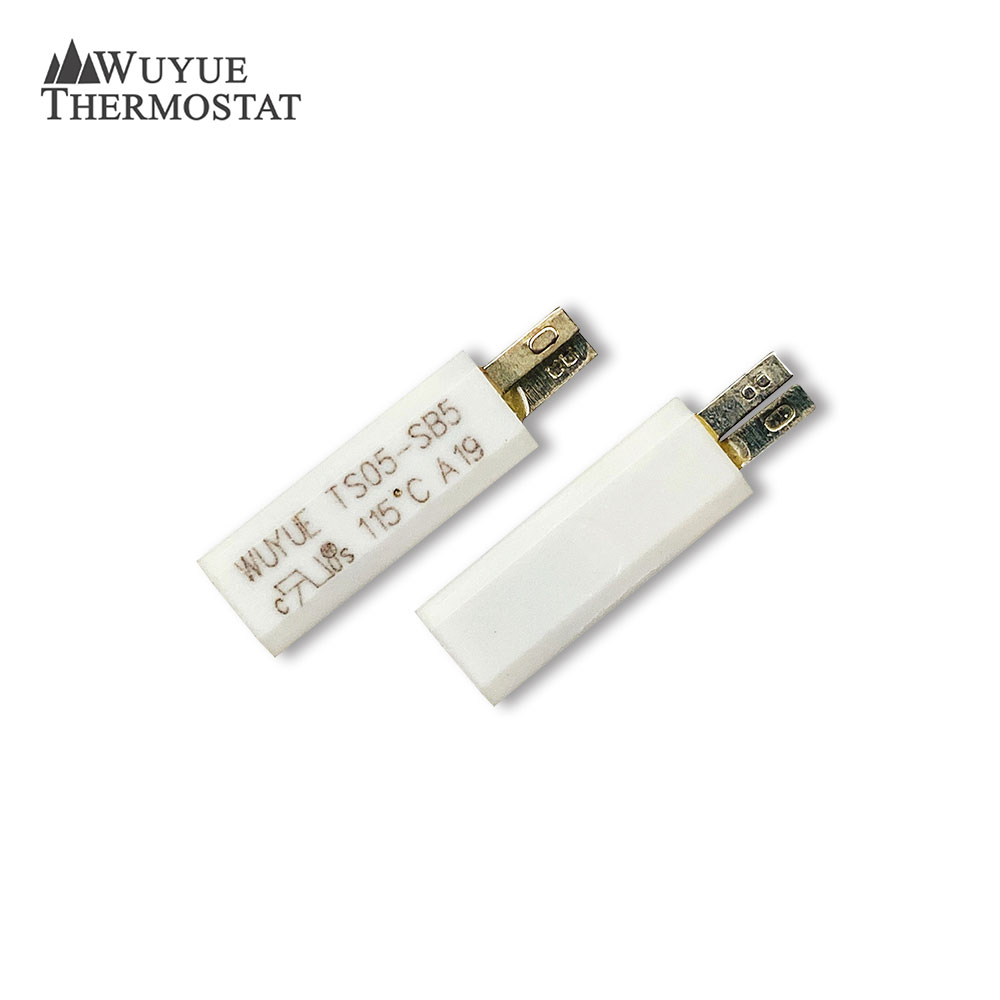

Terminals can be nickel strip or lead wire.

Electrical Specifications

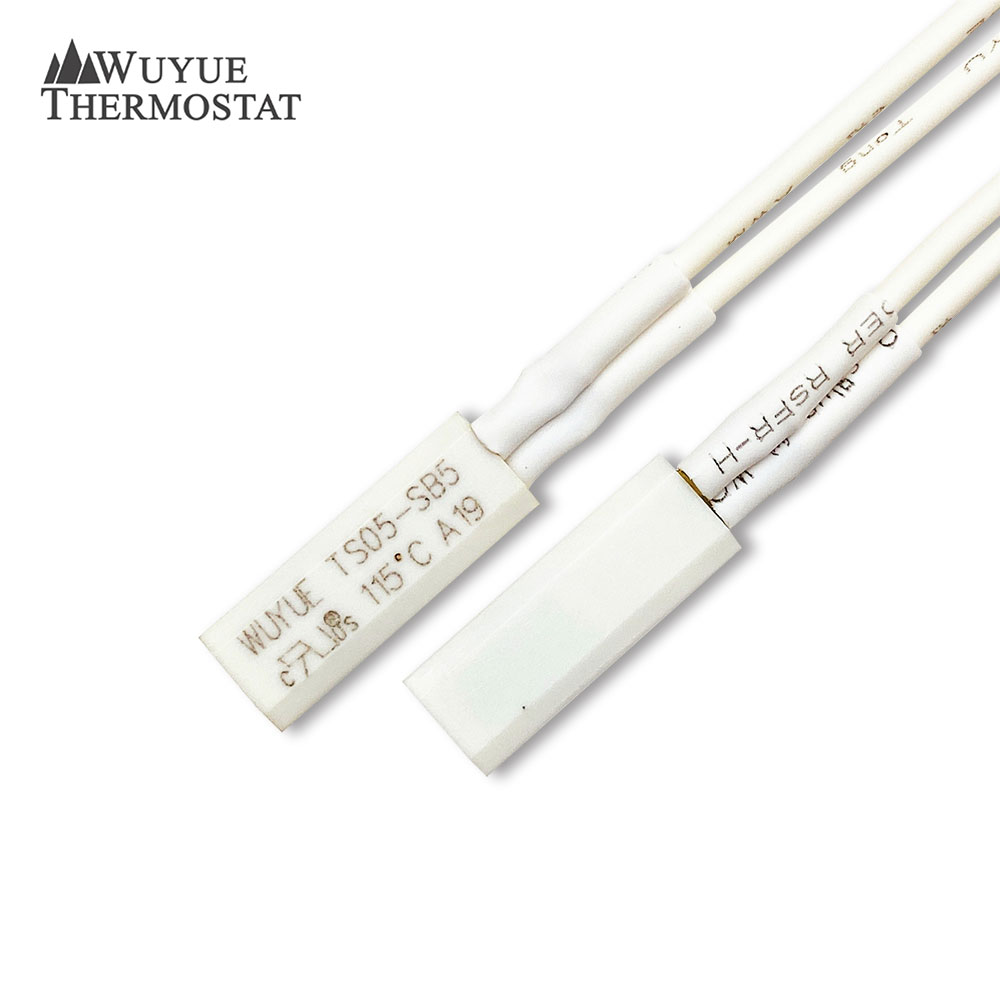

TS05-SB5:

8A / 12V DC   5A / 24V DC

6A / 120V AC  3A / 250V AC

TS05-SB1,TS05-SB2,TS05-SB3,TS05-SB7:

10A / 12V DC   6A / 24V DC

8A / 120V AC   5A / 250V AC

Temperature Range and Tolerance

Customers can nominate Any temperature from 30~150℃ between
Temperature tolerance ±3℃,±5℃

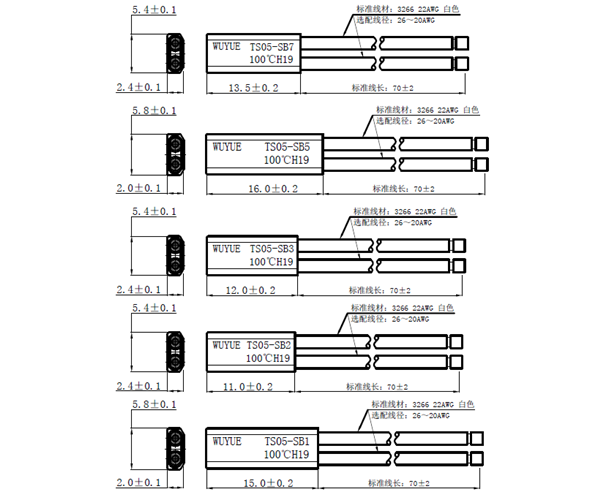

Dimensional Drawing

1637143637(1)
