TS-P Window motor protector car seat motor protetcor

Short Description:

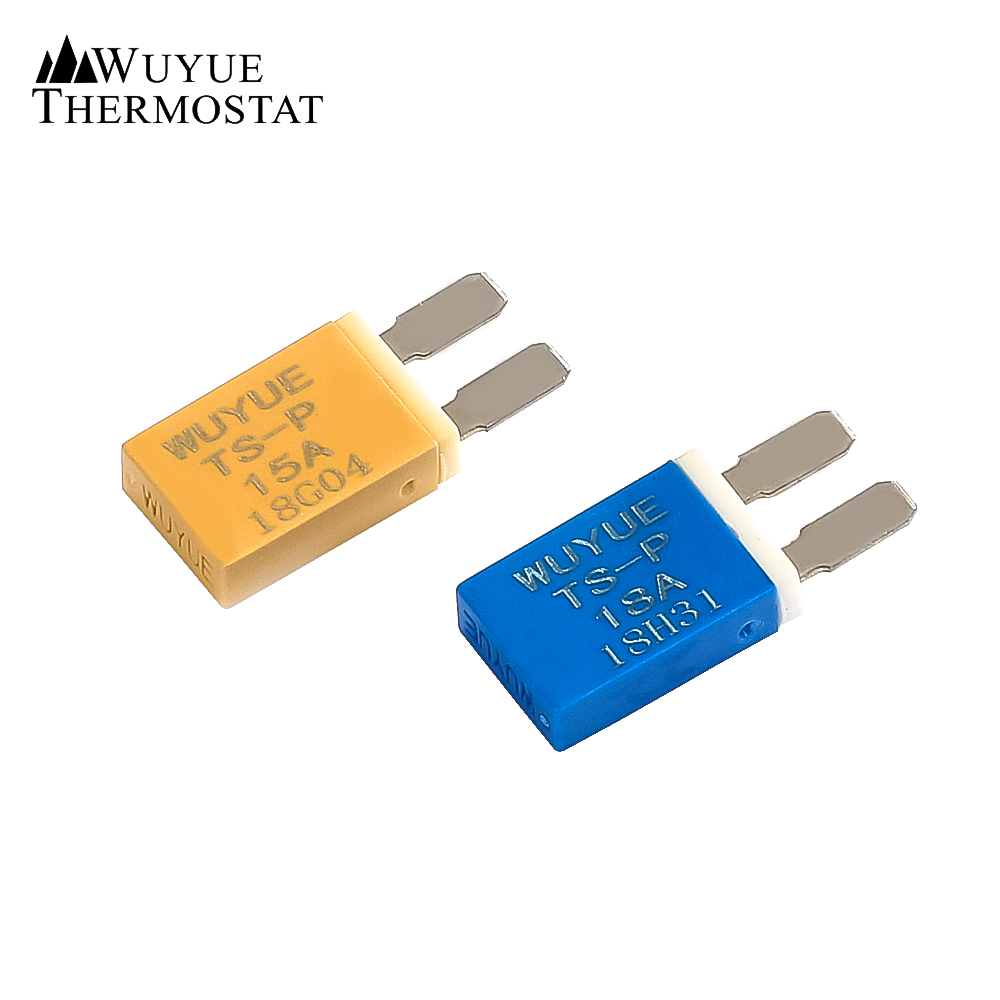

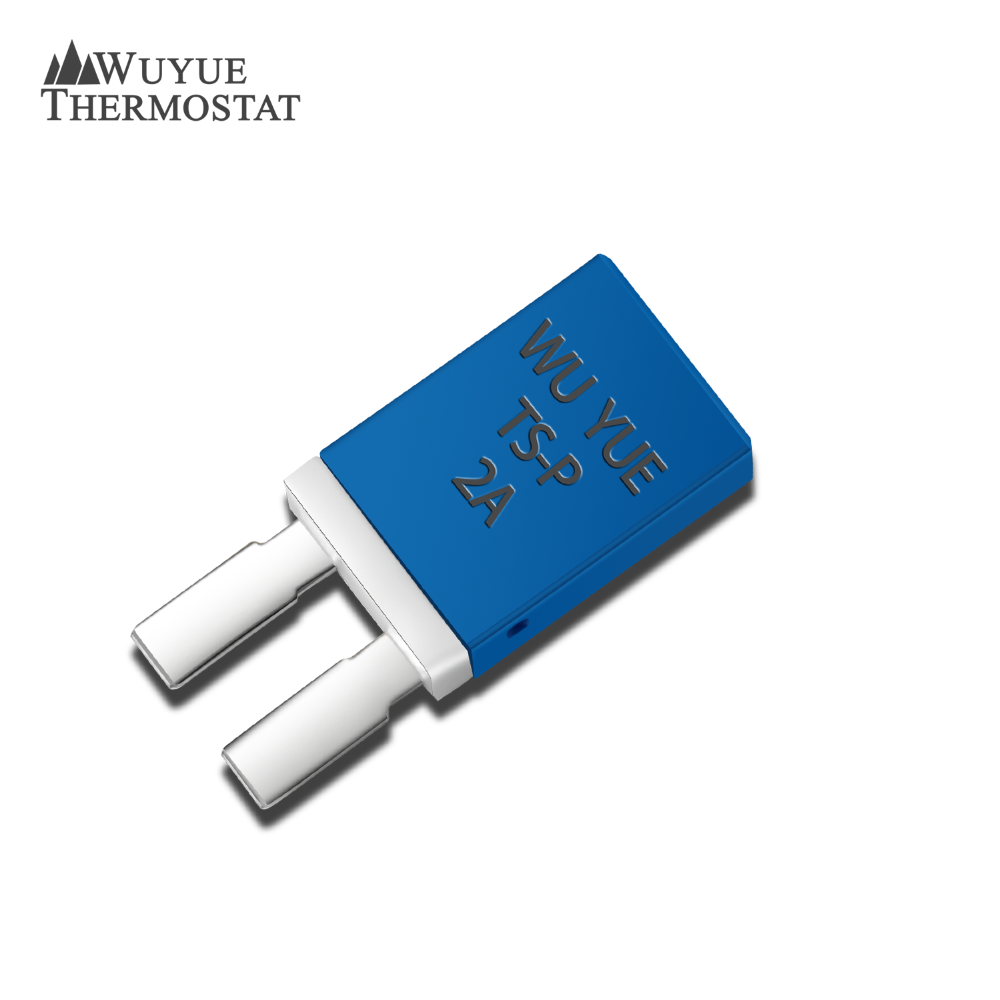

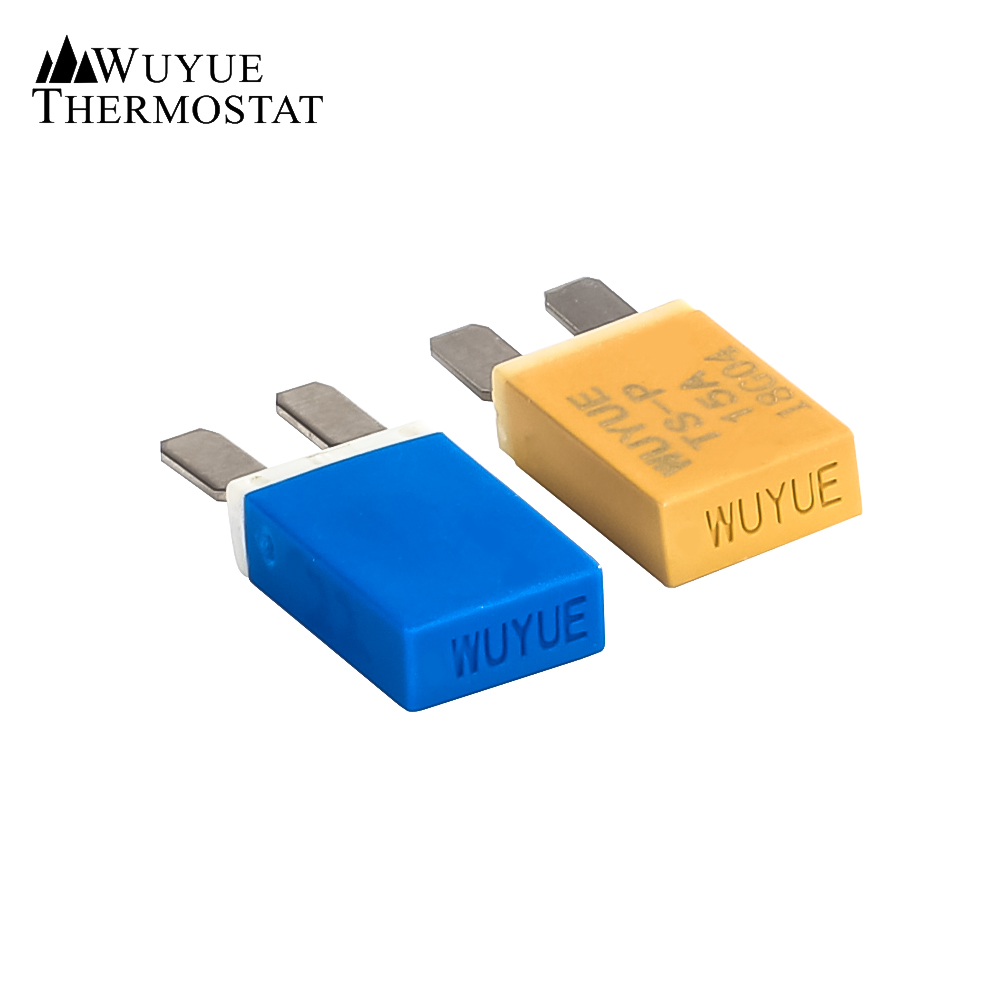

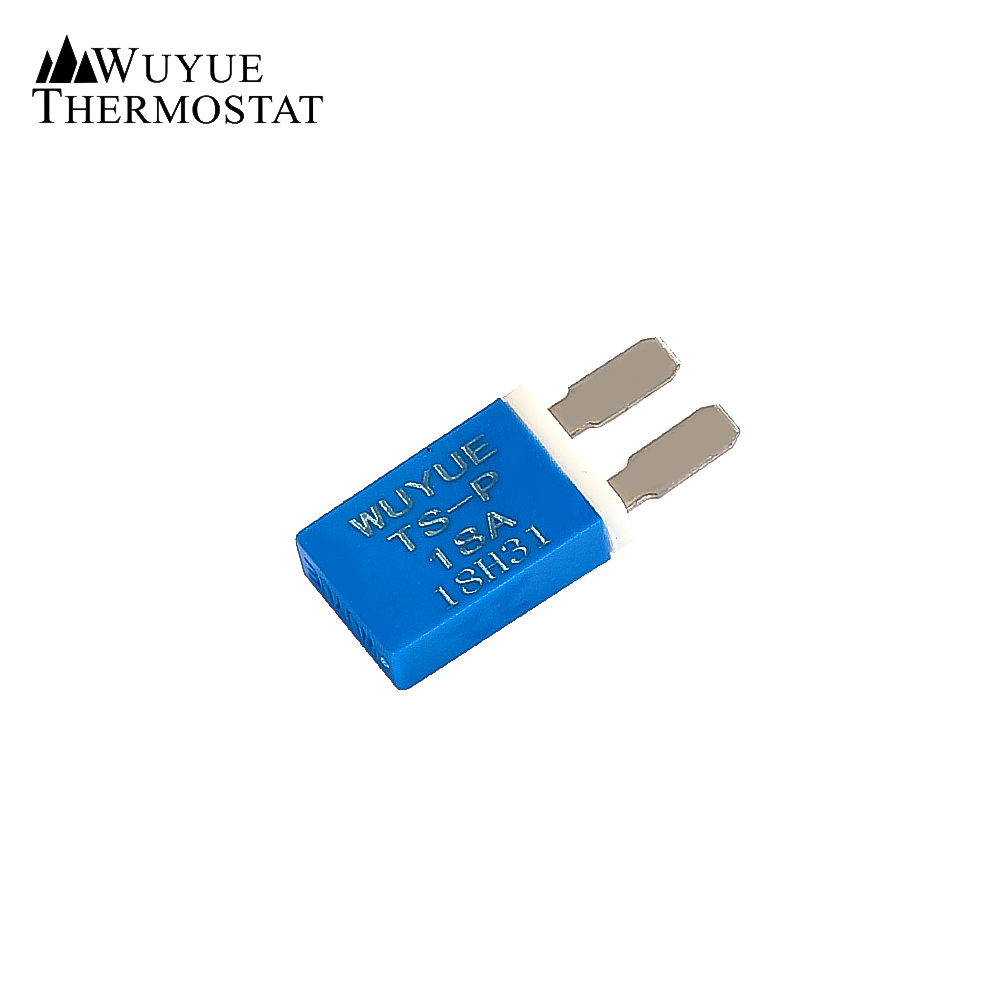

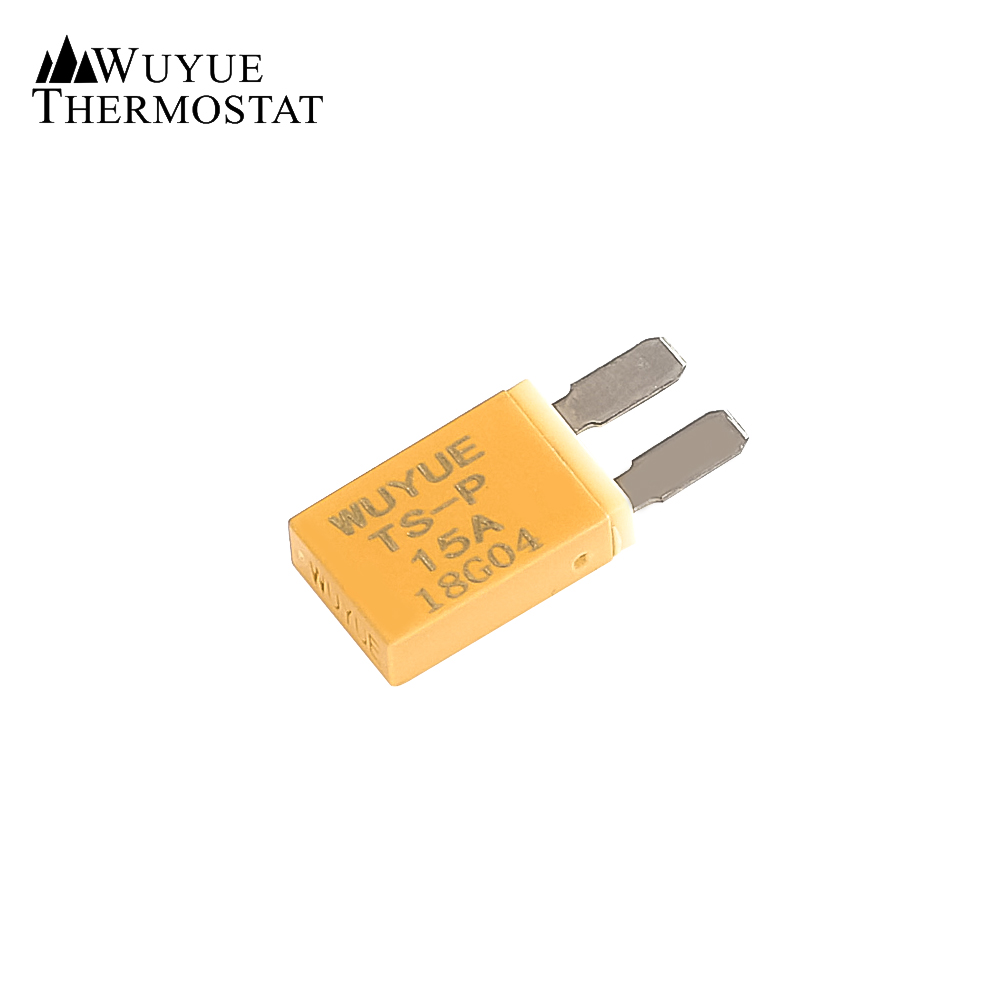

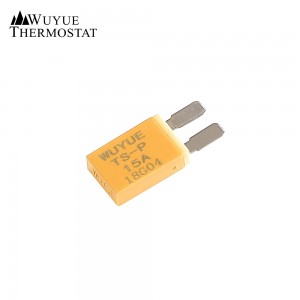

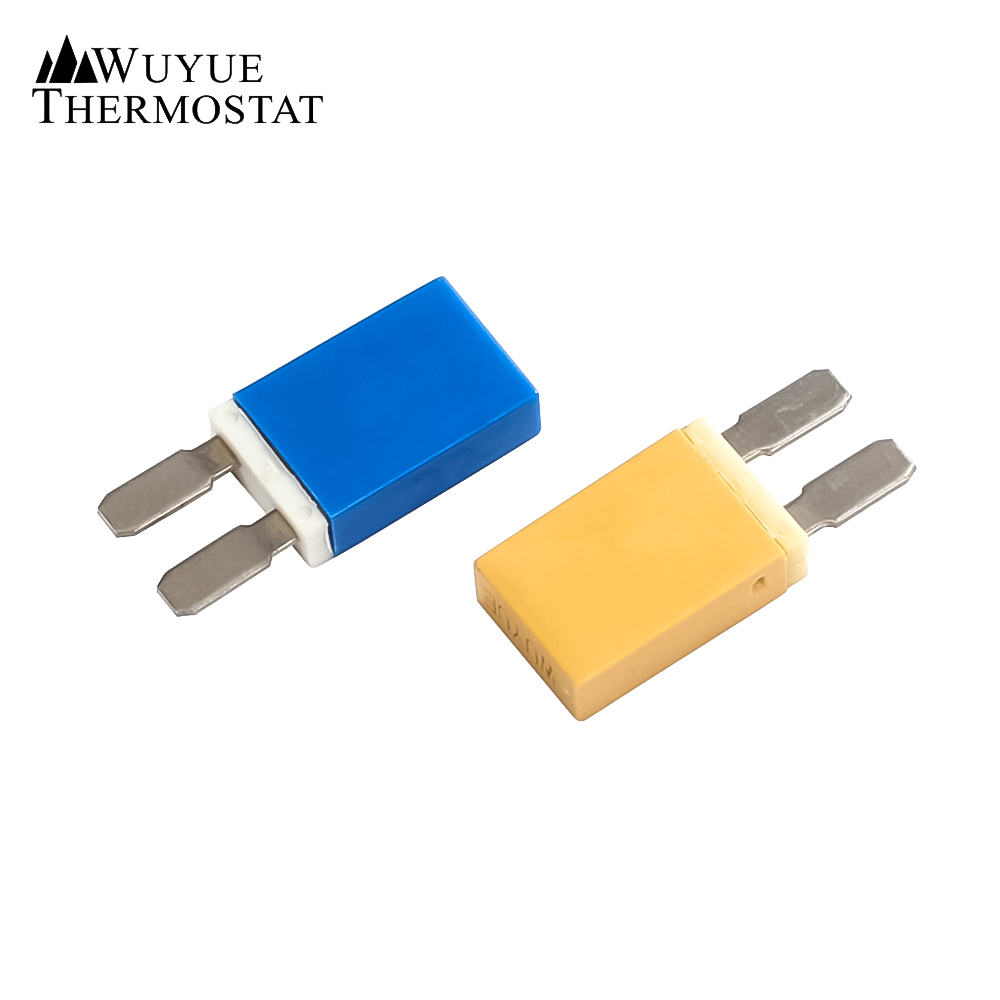

TS-P is a precise protector with plastic housing. It is sensitive to both temperature and current and can protect motor or transformer from over heating or loading effectively.

Send email to us

Product Detail

Special Features

Small size, long life and high reliability;

Accurate trip off time to prevent motor from overheating;

Both temperature and current sensitive;

Terminals are variable;

Working temperature:-20℃~80℃.

Electrical Specifications

125V AC / 250V AC : 2~20A

12V DC / 24V DC: 3~35A

Trip off current range: 2~35A

R/T 25℃ Current Testing Standards: 4~10S (Or Customized)

Temperature Range and Tolerance

Operating Temperature	60~180℃ （Each 5℃ Per Rating）
Operating Temperature Tolerance	±5℃， ±7℃

Design Principles

When ambient temperature or current exceeds the specified value, the inside bimetal of TS series will trip off to cut the circuit. When the temperature lowers down, the bimetal will reset and the circuit is connected again.
