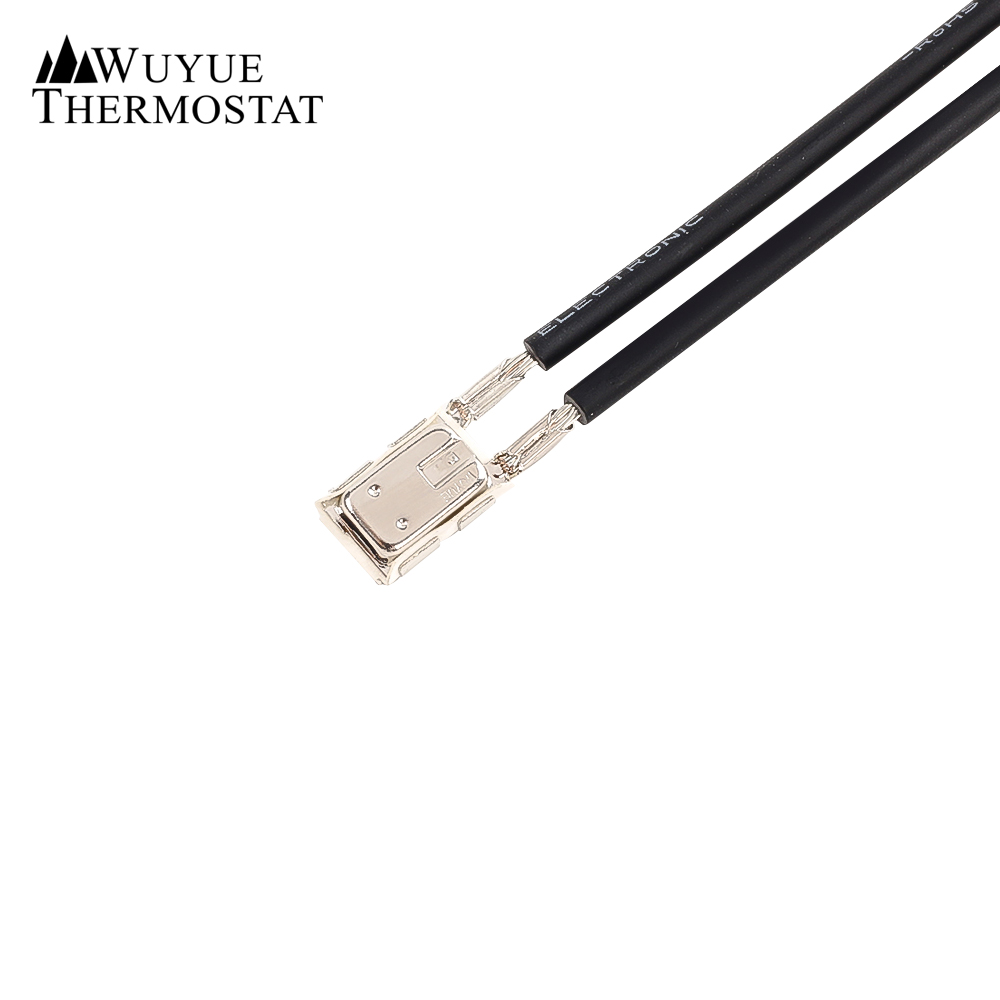

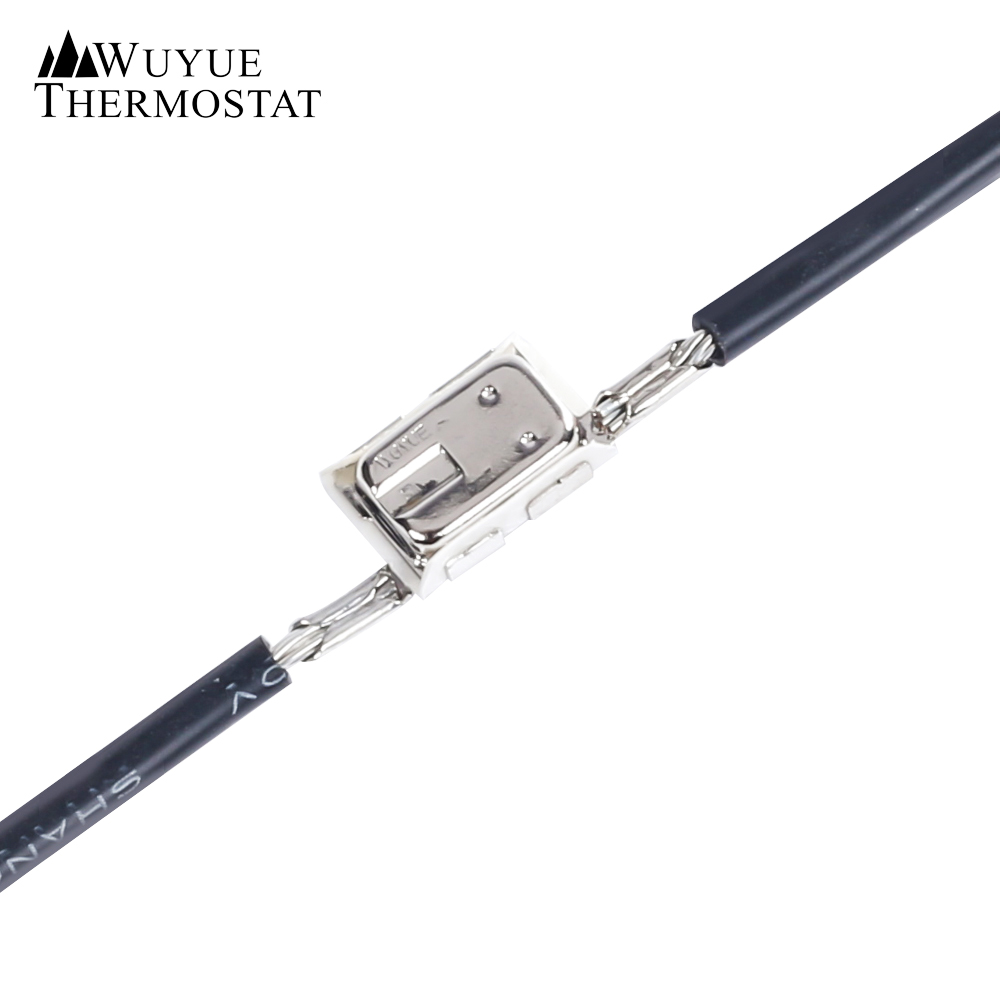

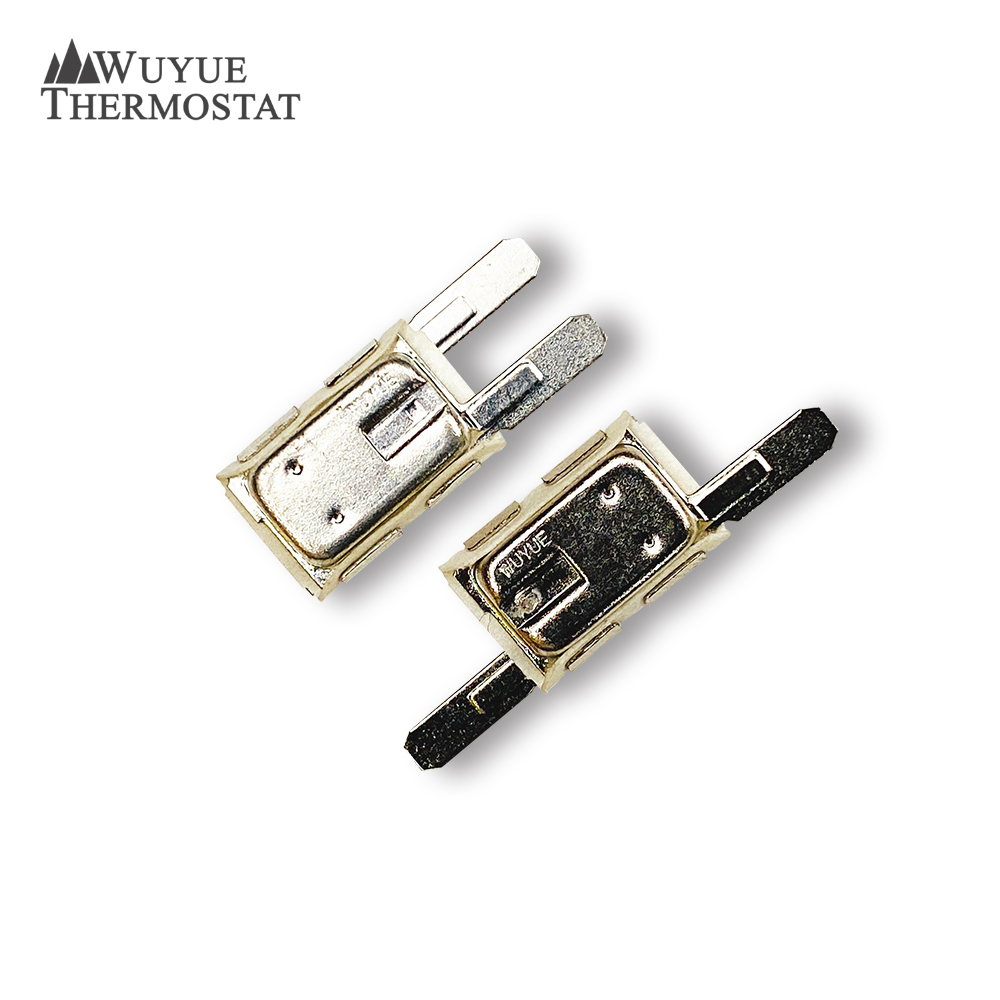

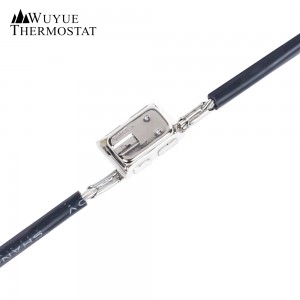

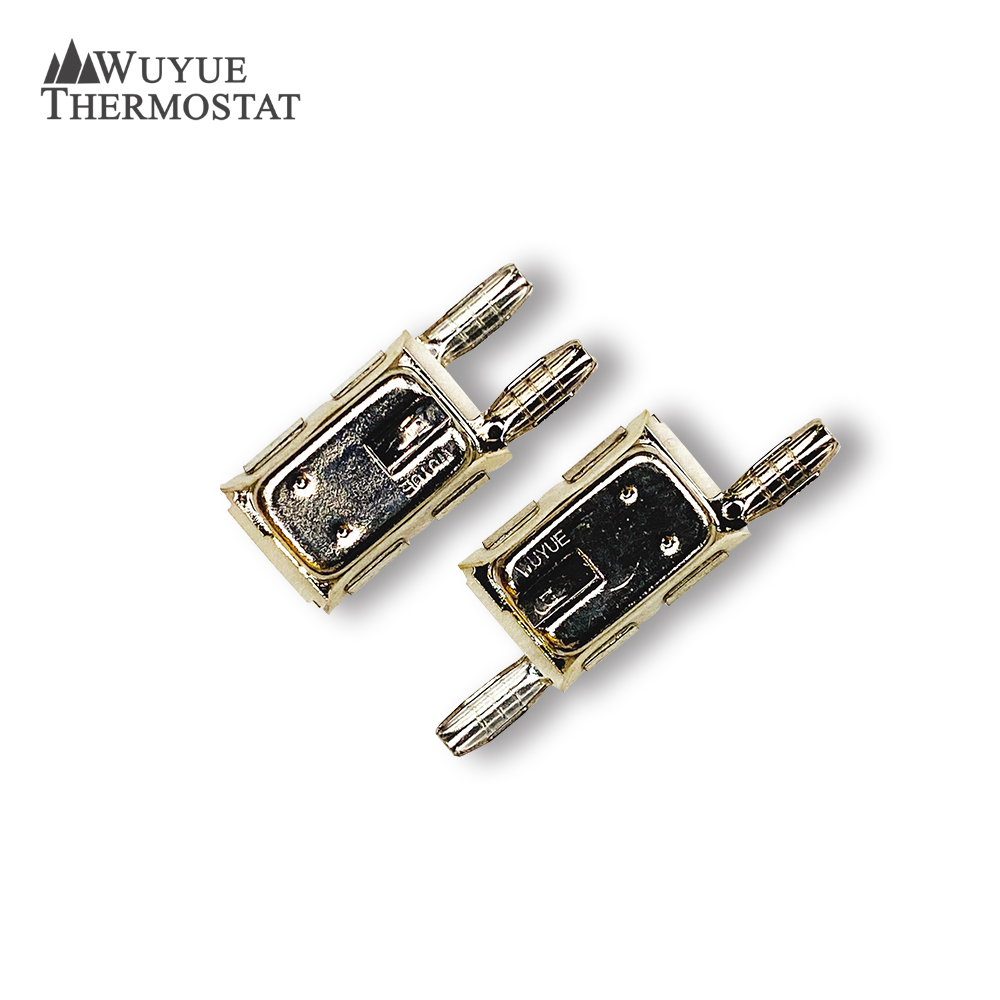

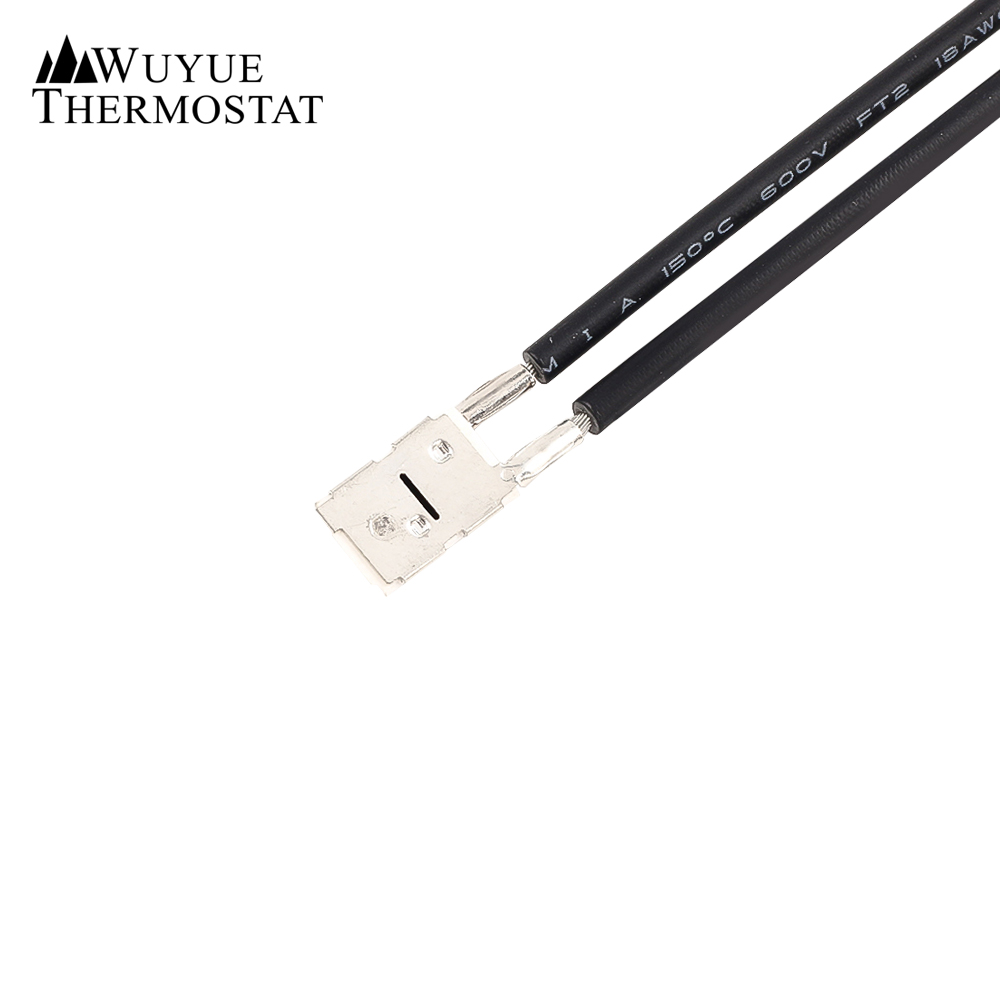

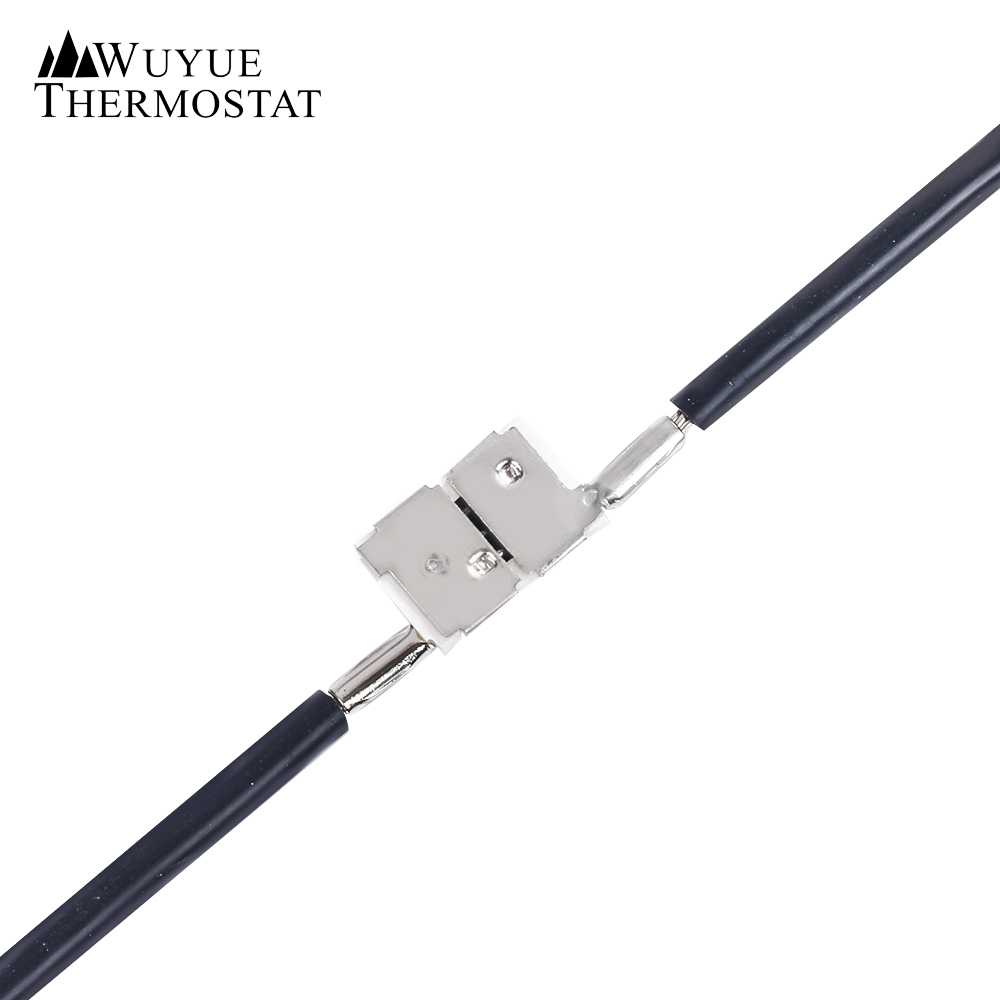

2MPE Small size both temperature and current protector AC

Short Description:

2MPE series are both temperature and current sensitive. They can protect motor from over heating or loading and the tripping off time can be controlled accurately.


Product Detail

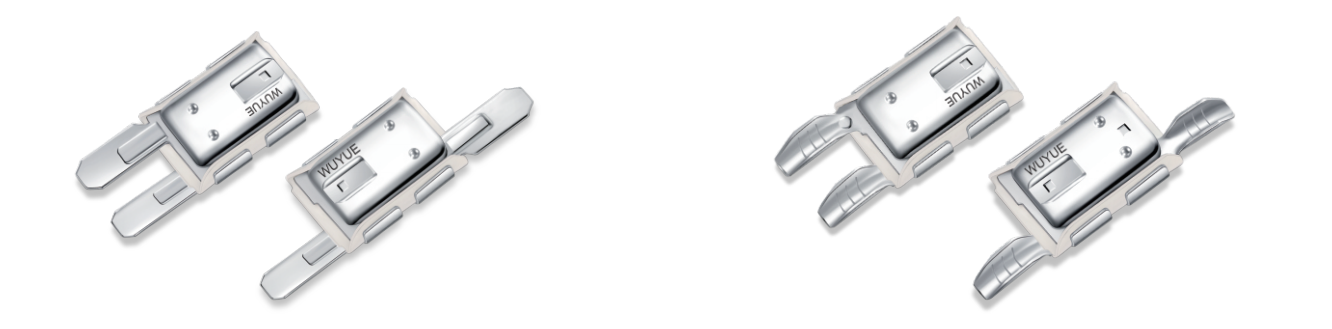

1630043471(1)

Special Features

Small size, long life and high reliability;

High level bimetal ensures that it can withstand the current of normal circuit;

The combination of bimetal and heater can action snappily;

Accurate trip off time can prevent motor from overheating;

Both temperature and current sensitive;

Each part ROHS environmental standards are strictly enforced;

Terminals are optional and customized;

Wires are optional and customized;

Sealed sleeving can make the protector varnishing proof.

Electrical Specifications

20A / 12V DC        10A / 24V DC        10A / 250V AC        18A / 125V AC

Technical Parameters

Operating Temperature Range 50℃~170℃
Workable Tripping Off Current Range 1~30A
Temperature Tolerance ±5℃,±7℃
R/T 25℃ Current Testing Standards 4~10 S (Or Customized)

Application

Window Motor                      Wiper Motor          Car Seat Motor        Skylight Motor

Soybean Milk Machine        Juice Machine        Food Processer        Noodle Machine

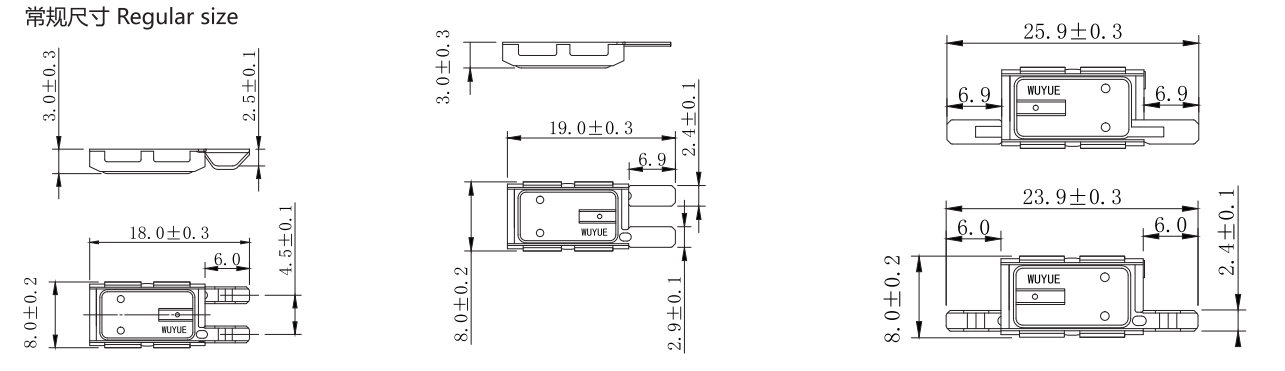

Dimensional Drawings

1628480142(1)
