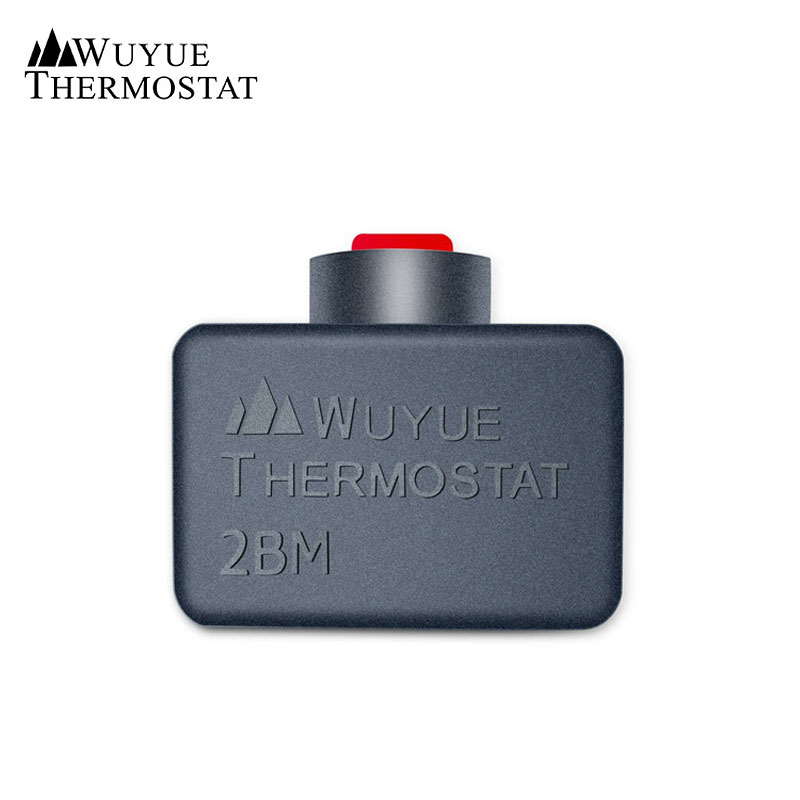

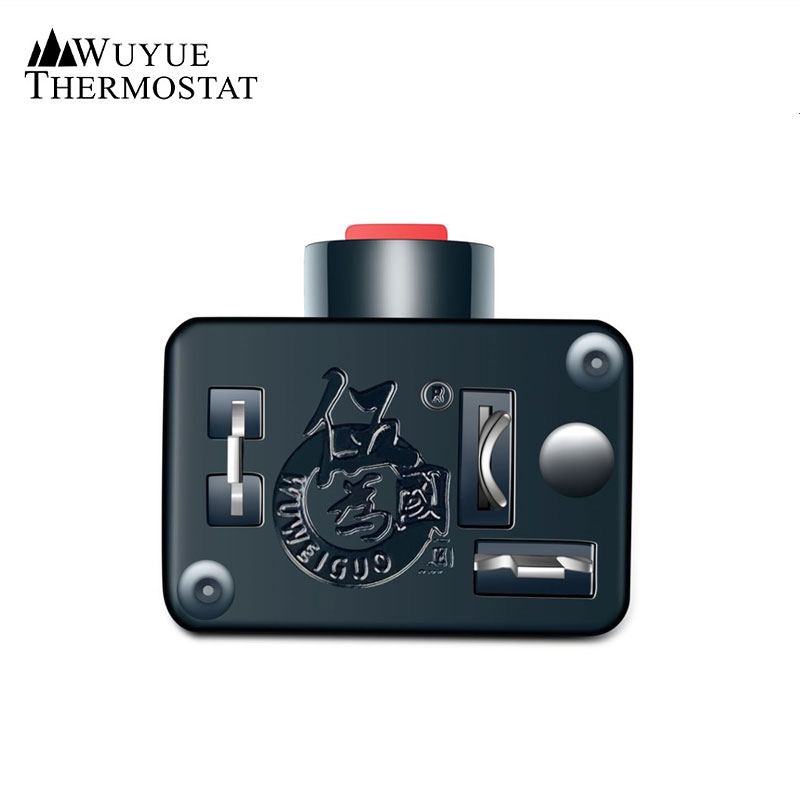

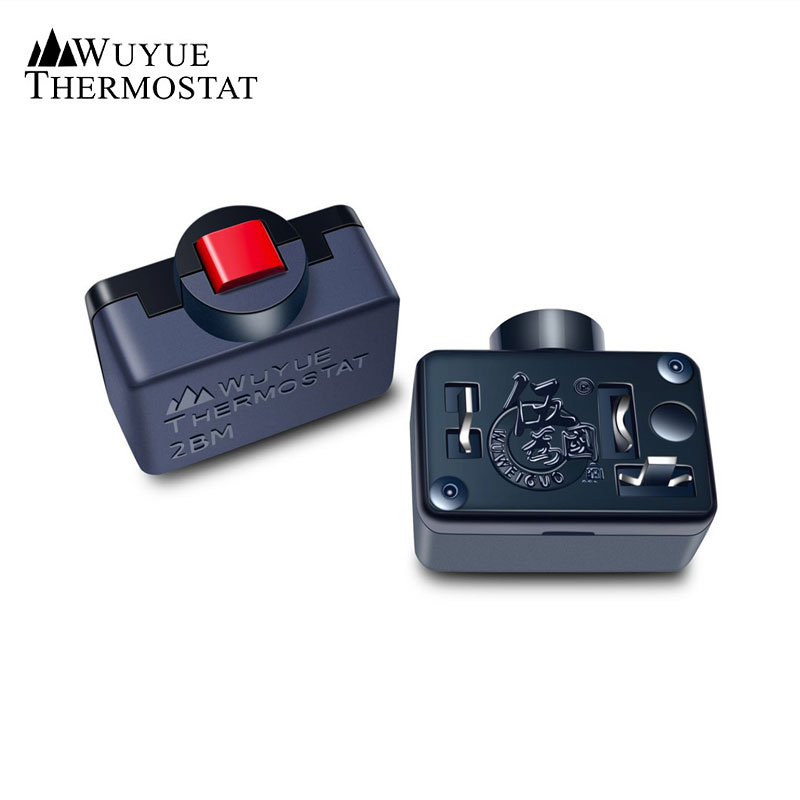

2BM Thermal protector for garbage processor / food waste decomposer

Short Description:



2BM overload protector has a very fast tripping action to prevent the motor temperature from being too high and a manual reset protector for automatic circuit disconnection when the motor overloads for a long time, the rotor is blocked, the voltage is too low, the temperature is too high and the air is not ventilated, It is mainly used in air motor, motor pump, commercial and industrial machinery motor, food waste disposer , fuel oil motor, power tool, vacuum cleaner, etc.




Product Detail

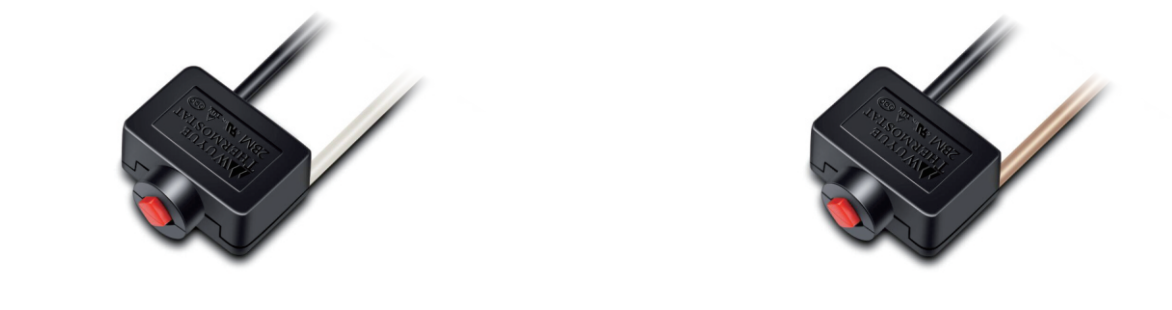

1630049281(1)

Special Features

Fully enclosed, compact size, long life span;

High reliability and fast trip off;

Manual reset with dual control of current and temperature;

Very fast trip time to prevent motor temperatures from being too high;

Specific specifications and wires can be flexibly customized according to customers' specific requirements.

Technical Specification

Rated Voltage 125/250V AC
Control Current Range 3A~50A
Short Circuit Current 1000A
Hi-pot Test 1500V AC/Min
Temperature Range 90℃~150℃±5℃
Trip off Time 4~9 seconds or Customized

Application

Food Waste Disposer

Air Motor

Motor Pump

Commercial and Industrial Machinery Motors

Fuel Stove Motor

Power Tool

Vacuum Cleaner

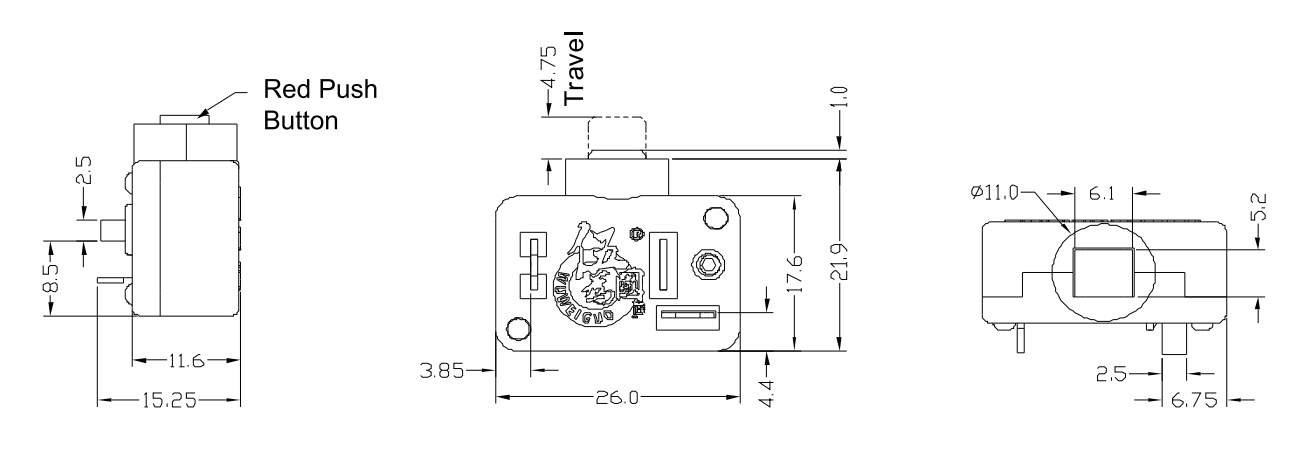

Dimensional Drawings

1628585682(1)
