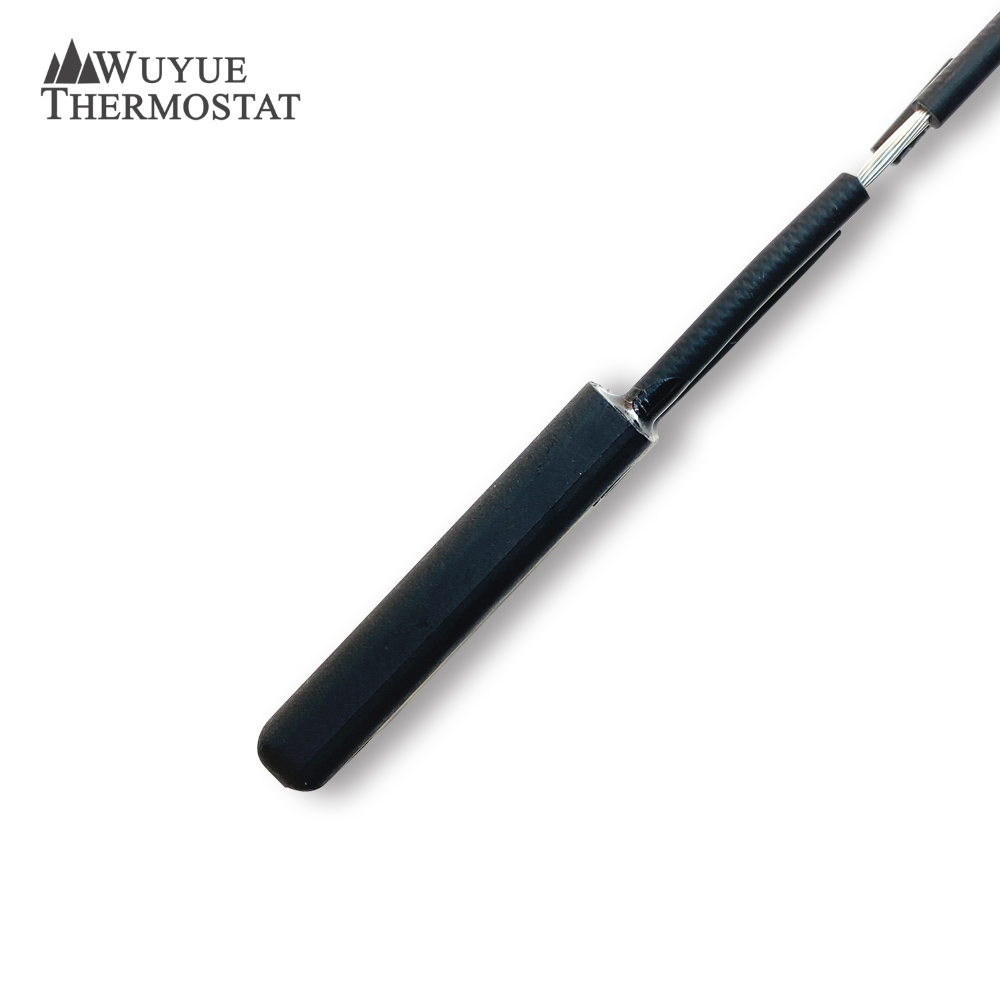

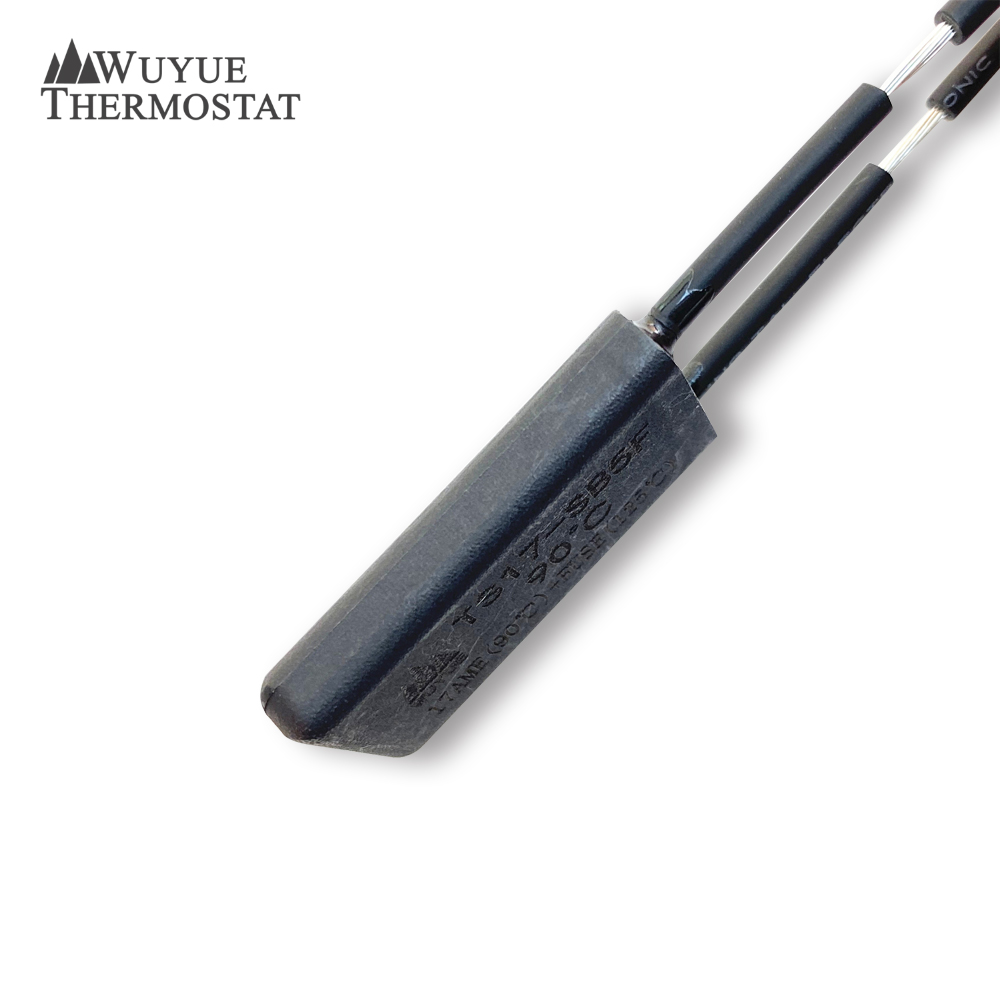

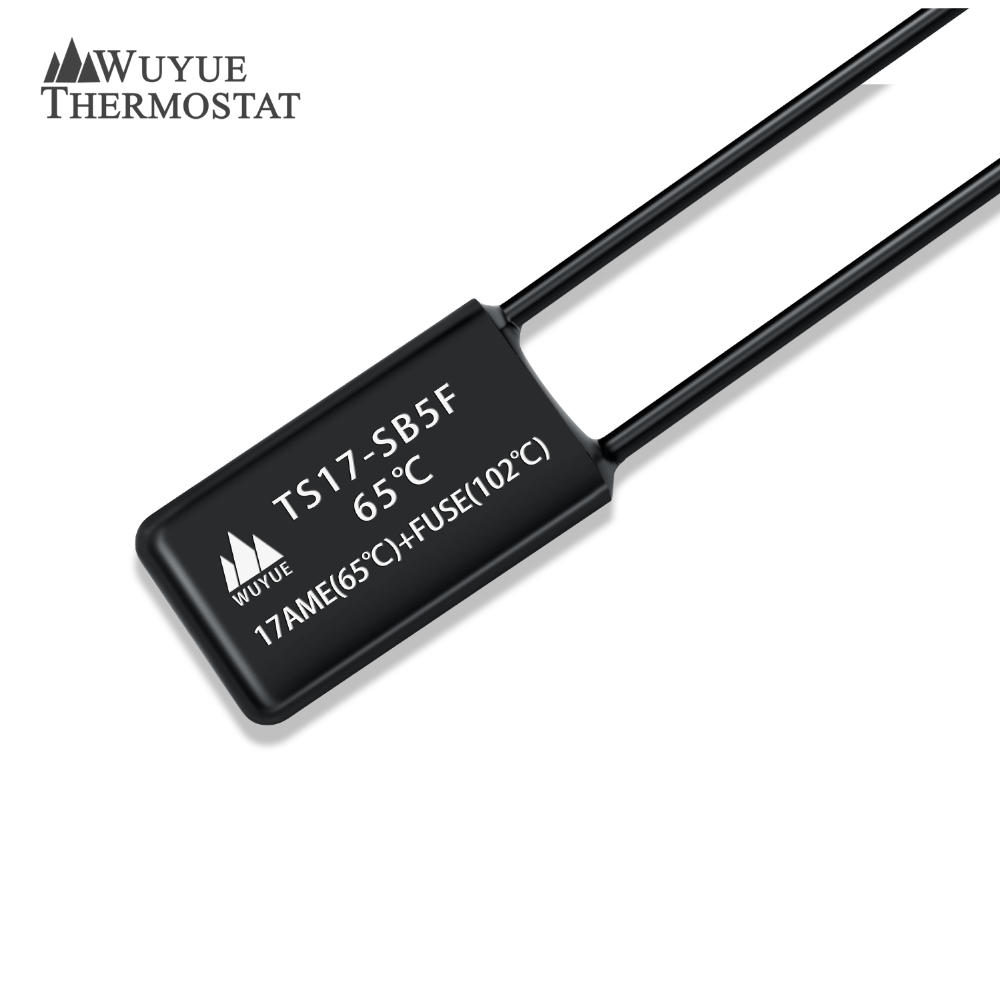

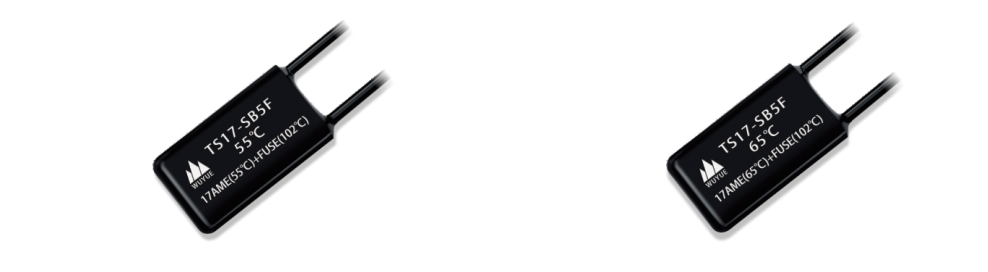

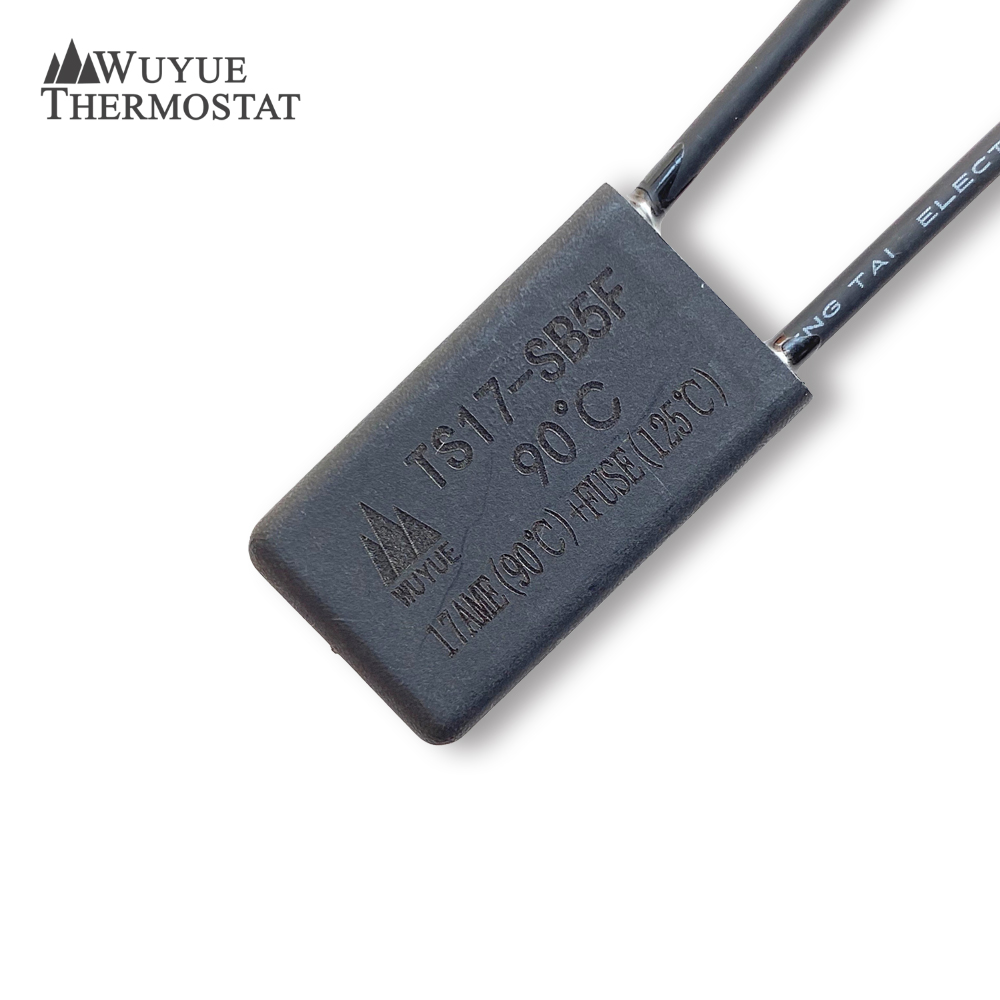

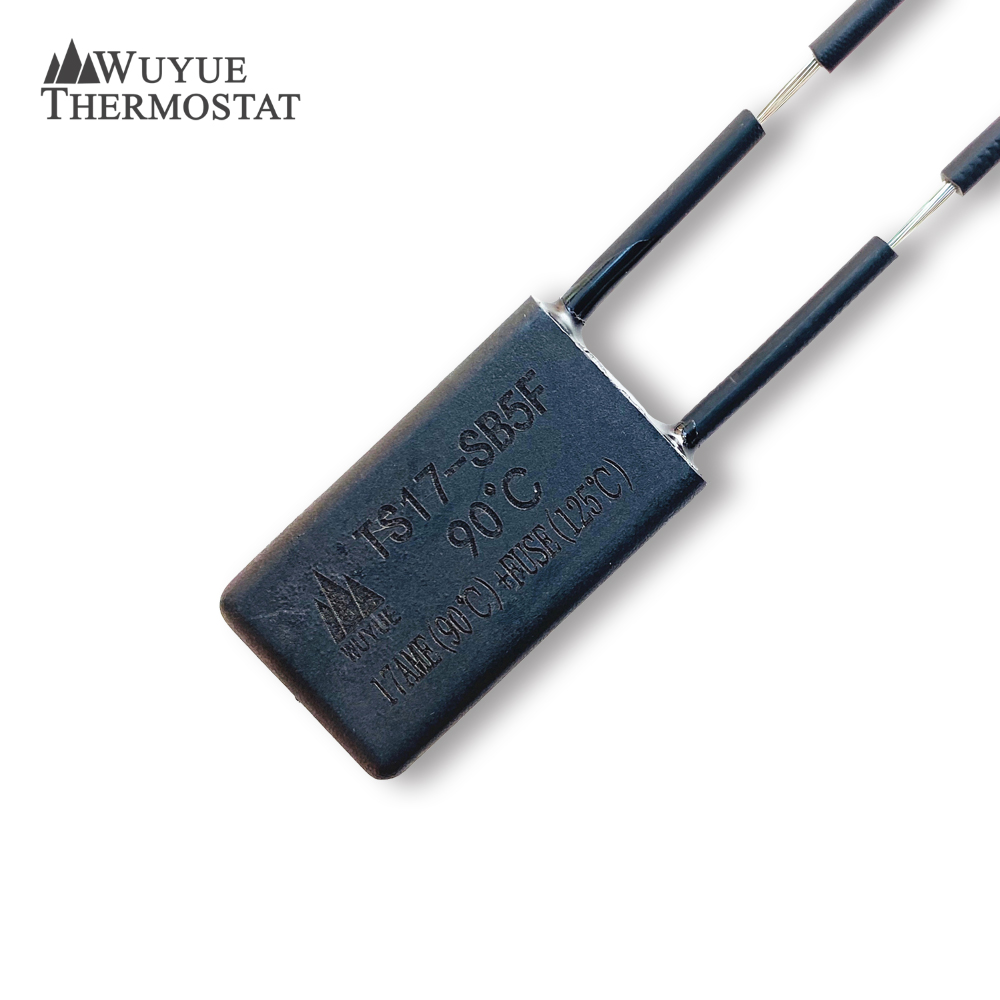

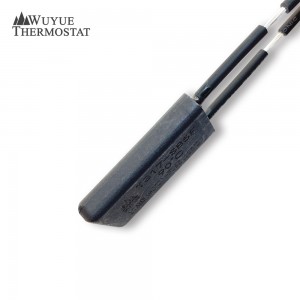

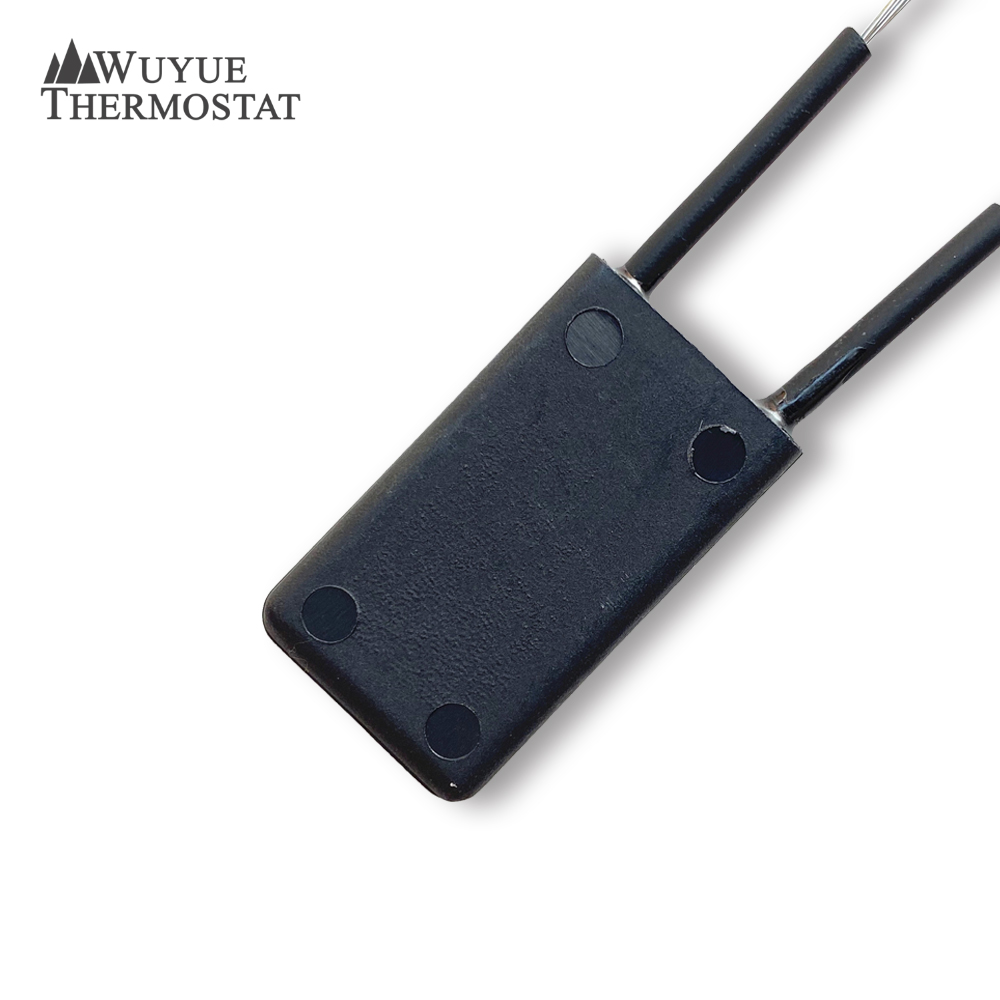

17AME+FUSE Combination protector
Special Features
Small size long life and high reliability;
Connected a cut off in series to save process in final applications;
100% Snap action;
Both temperature and current sensitive;
Sealed housing, water proof;
Each parts ROHS environmental standards are strictly enforced;
The type of cut off is optional and customized;
The types and length of wire are optional.
Electrical Specifications
20A / 16V DC 10A / 250V AC 20A / 125V AC
Technical Parameters
| Operating Temperature Range | Any temperature from 45℃~180℃ between |
| Temperature Fuse | Customizing |
| Temperature Tolerance | ±3℃，±5℃ |
Temperature Code
|
No. |
Off Temperature (℃) |
On Temperature(℃) |
|
018 |
55 |
38 |
|
019 |
60 |
40 |
|
020 |
65 |
45 |
|
021 |
70 |
50 |
|
022 |
75 |
55 |
|
023 |
80 |
57 |
|
024 |
85 |
60 |
|
025 |
90 |
62 |
|
026 |
95 |
65 |
|
027 |
100 |
67 |
|
028 |
105 |
70 |
|
029 |
110 |
72 |
|
030 |
115 |
75 |
|
031 |
120 |
78 |
|
032 |
125 |
82 |
|
033 |
130 |
85 |
|
034 |
135 |
90 |
|
035 |
140 |
93 |
|
036 |
145 |
95 |
|
037 |
150 |
100 |
|
038 |
155 |
102 |
|
039 |
160 |
105 |
|
040 |
165 |
110 |
|
041 |
170 |
115 |
|
042 |
175 |
118 |
|
043 |
180 |
120 |
Action Temperature Tolerance
|
Code |
Tolerance |
|
5 |
±5℃ |
|
3 |
±3℃ |
Application
Electric heating cushion Pet mat Electric blanket Small appliances

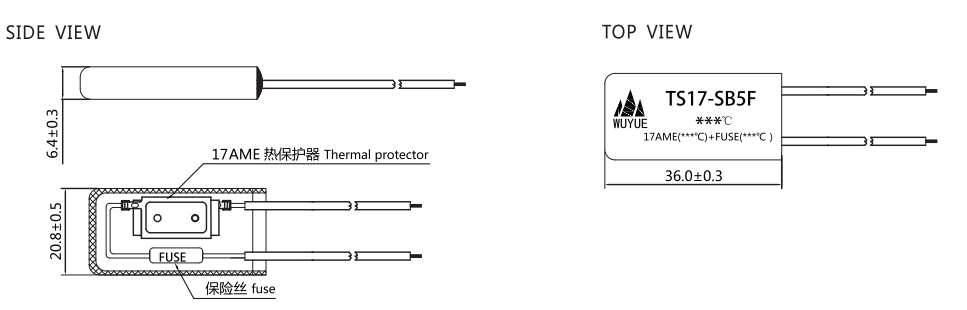

Dimensional Drawing
